美國LA-26附著力測試膠帶
管理員 發布日期：2015-5-31 點擊數：6216次
產品簡介：美國P-99百格測試膠帶2009年9月已經停產，美國標準協會(huì )指定替代用膠帶為美國LA-26測試膠帶，美國LA-26百格測試膠帶是美國P-99膠帶的替換產品，是美國ASTM國際附著力D3359標準的唯一指定測試膠帶，規格：25mm*55M
產品介紹：

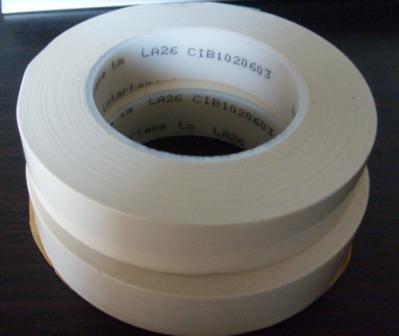

美國LA-26百格測試膠帶
American Puma Si P-99 alternative Tape Polyester/rope fiber laminate; offers bulk and stiffness;hand tears for tabbing, holding & wrapping

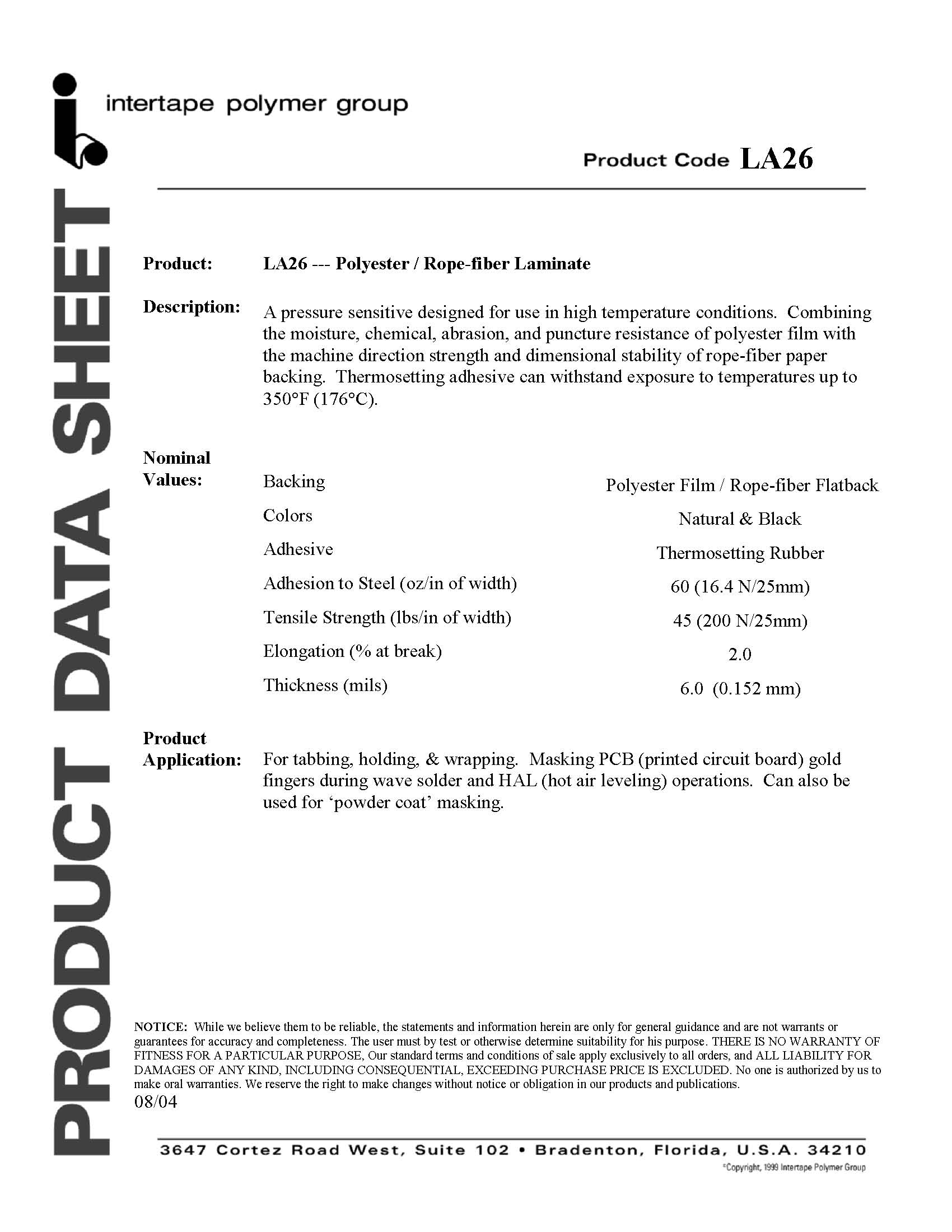

Intertape LA-26 Polyester/Rope-Fiber Laminate Tape combines the moisture, chemical, abrasion an d puncture resistance of polyester film with the machine direction strength and dimensional stability of rope-fiber paper backing, this pressure sensitive adhesive is designed for use in high temperature conditions. It is ideal for tabbing, holding and wrapping, masking PCB gold fingers during wave solder and HAL operations. It can also be used for "powder coat" masking. It is also currently being considered as a replacement to Permacel P-99 for ASTM D3359-08 adhesion testing.
Physical Characteristics
|
ROLL SIZE |
Tensile |
Adhesion |
Thickness |
Elongation |
|||
|
1 in. x60 yds. |
lb/in |
N/25mm |
oz/in |
N/25mm |
mils |
mm |
% |
|
Actual Size:25mmx55m |
45.0 |
197.0 |
60.0 |
16.7 |
6.0 |
0.15 |
2.0 |
備注：

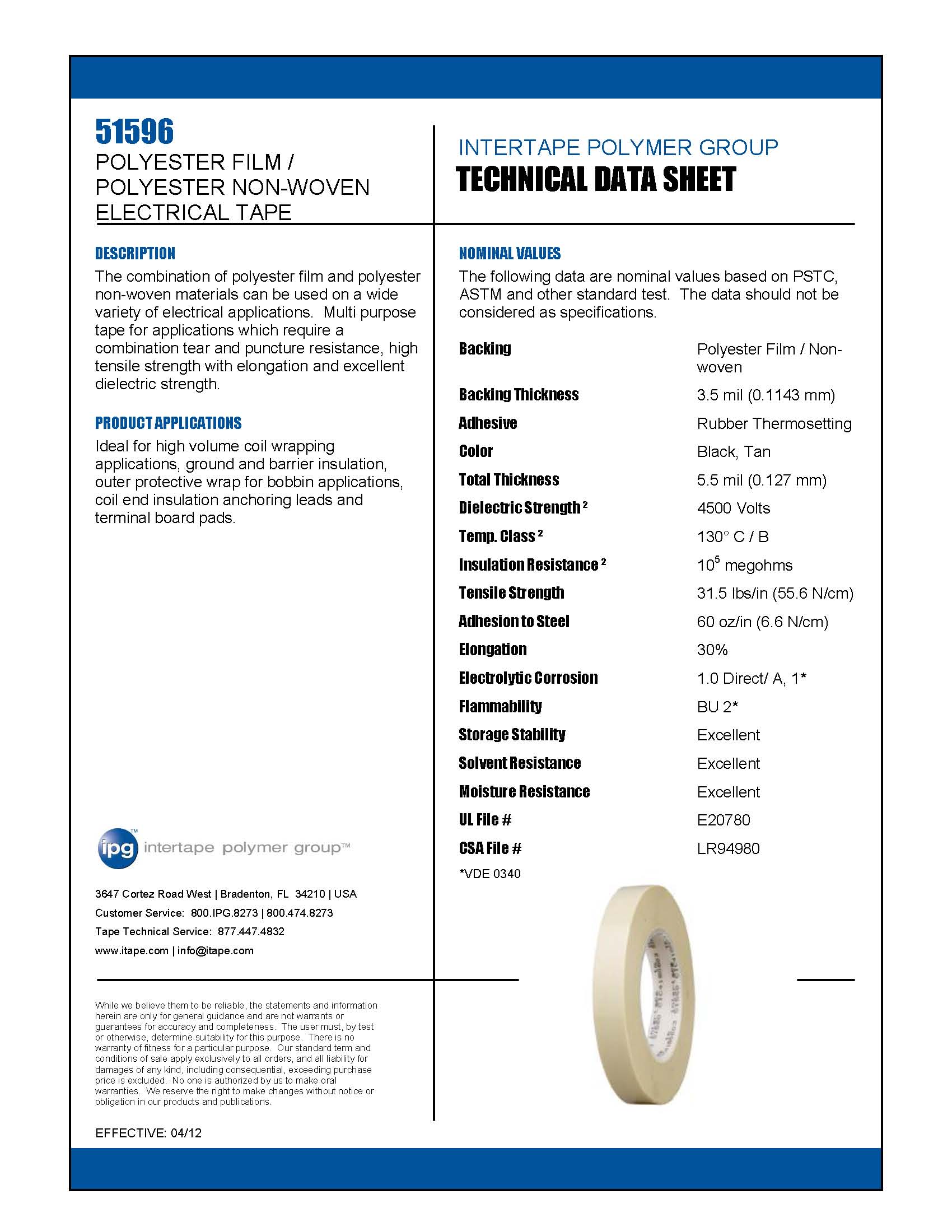

同一品牌LA-26可與IPG51596互代使用參數如下對比：
